Chixing CNC Router Allotypic Wood Engraver YH1530/2030/2040

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now
Chixing CNC Router Allotypic Wood Engraver  YH1530/2030/2040

Click to enlarge image

 Origin

China

 Model Number

YH1530/2030/2040

 Brand Name

YIHAI


We will give you perfect service

1) gratis installation ,debugging , training and One year after-sales service

2)User-friendly English manual for machine using and maintaining



Chixing Allotypic Wood Engraver  YH1530/2030/2040


woodprocessmachine
Square orbit,double slipper
Vacuum table with 6 zones
High speed stepper motor and driver
Import ballscre


Equipment Features



  • Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time. Imported ballscrew, high precision for cutting.
  • Adopting advanced DSP system, operated with the handle, convenient operation, humanization design. Unique intelligent budget principle,fully develops the potential of the motor and lead to high processing speed,the synchronization of curves and straight lines,smoother curves.
  • Well compatibilityCAD/DAM designing software e.g. Type3/artCAM/Castmate/wentai etc.
  • Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. no oil vacuum pump,high suction,more convenient,stable capability.
  • Adopt high speed stepper motor and drivers,and two motors for Y axis.Max speed is 35M/MIN. Auto Aligning System. With air cooling spindle highly upgrade the processing speed.



Technical-parameters



Model

YH1530

YH2030

YH2040

Option

XY Working area

1500*3000mm

2000*3000mm

2000*4000mm



Z Working area

200mm

200mm

200mm



Table size

1680*3500mm

2180*4000mm

2180*4500mm



Spindle

4.5kw water cooling

4.5kw water cooling

4.5kw water cooling

Italy HSD

Max feeding

ï¼Âž25m/min

ï¼Âž25m/min

ï¼Âž25m/min



Work-holding

by suction

by suction

by suction



Processor

DSP/主é¢Â‘Frequency 100MHz

DSP/Frequency 100MHz

DSP/Frequency100MHz



Interface

USB

USB

USB



Command

G code *.u00*.mmg*.plt

G code *.u00*.mmg*.plt

G code *.u00*.mmg*.plt



Surroundings for software

DSP

DSP

DSP

Ncstudio control system under Windows OS.

Power(not include the spindle)

2500W

2500W

2500W



Power

AC 380V/50Hz

AC 380V/50Hz

AC 380V/50Hz



Main axle power rate

4.5KW

4.5KW

4.5KW

3.0/3.5/6.0KW/Water/Air-cooling(Option)


Main axle rotating speed

0-24000 rpm

0-24000 rpm

0-24000 rpm

(Air-cooling spindle with 18000 rpm)

Work Mode

Stepper

Stepper

Stepper

Servo



parts

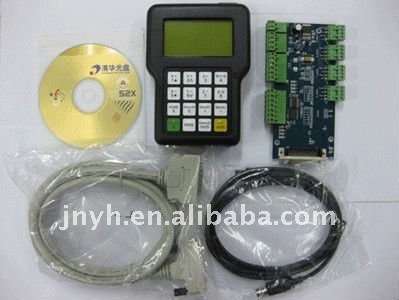

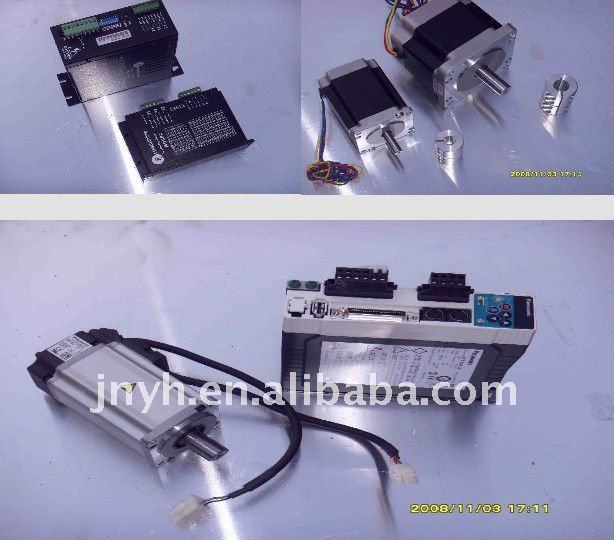

DSP                                     STEPPER MOTOR





SAMPLES





Any questions, feel free to let me know.





We are now looking around the agents ,welcome to join in cooperation.


Related Keywords: CNC , Router , Woodworking , Machine , Engraver

  Certificates Certificate Name Certificate Number
CE

E803208001

  Packaging

in plywood

  Minimum order

1 Set/Sets

  Supply ability

150 Set/Sets per Week
