Chixing CNC Wood Engraver Router Machine for Export_M25-A

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now
Chixing CNC Wood Engraver Router Machine for Export_M25-A

Click to enlarge image

 Origin

China

 Model Number

YHM25-A

 Brand Name

YIHAI


We will give you perfect service

1) gratis installation ,debugging , training and One year after-sales service

2)User-friendly English manual for machine using and maintaining





YHM25-X CNC Woodworking Machine



1.hiwin guidercnc router.
2.Gear racks.
3.powerful spindle.
4.high speed driver.





Equipment Features



  • Well-known water cooling spindle, high precision, long life time, steady working, easy to start up.
  • Thicken square pipe structure, well welded, no distortion for whole structure.
  • Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
  • DSP controller system with USB interface, working without connecting with computer during working and easy to control.
  • Software: CAD/DAM designing software e.g. Type3/ARTCAM/Castmate/wentai etc.
  • Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials. Options for vacuum pump: vacuum pump made in china or No-oil vacuum pump made in Germany. Auto-oiling system(option). Adopt high speed stepper motor and drivers, and two motors for Y axis. Max speed is 35M/MIN.Auto Aligning System.



Main Technique Parameter:


Model M25-A
XY working area 1300X2500mm
Z working area 200mm
Table size 1480x3000mm
Max feeding >35m/min
Work-holding By suction
Processor DSP/Frequency 100MHz
Interface USB
Command G code*.u00*.mmg*.plt
Surroundings for software DSP
Power(not include the spindle) 1840W
Working voltage 380V/50Hz
spindle power rate 4.5KW(italy air cooling)
spindle rotating speed 0-18000rmp/min
Drive motor steper





Well-known water cooling spindle(Option:HSD,Italy), high precision, long life time, steady working, easy to start up.

P1010480

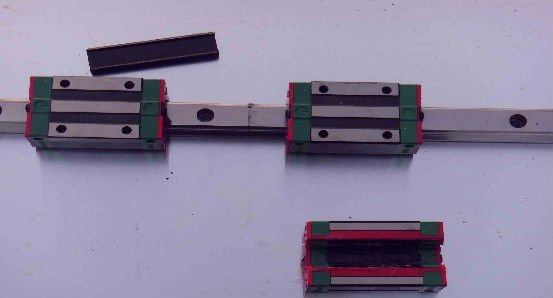

Adopt Taiwan Hiwin #25 square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.

HIWIN

DSP controller system with USB interface, working without connecting with computer during working and easy to control.
DSP ALL
Vacuum Table with 6 vacuum zones, which can adsorb different sizes materials.

1

Adopt high speed Leadshine stepper motor and drivers,and two motors for Y axis. (Option:YAKO STEPPER,panasonic or YASKAWA Servo  ).

STEPPER




We are now looking around the agents ,welcome to join in cooperation.


Related Keywords: CNC , Wood , Engraver , Router , Machine

  Certificates Certificate Name Certificate Number
CE

E803208001

  Packaging

plywood case,Normal GP container is okay.

  Minimum order

2 Set/Sets

  Supply ability

150 Set/Sets per Month
